Laser Stained Glass

Materials:

• Smokey Hills Ecoblack
• Smokey Hills MDF
• Screw Post Binding Screws - Amazon
• Translucent Acrylic - Synergy Carfts

This project was born out of a desire to experiment with making a stained glass panel, featuring translucent acrylic as the glass. I used a voroni pattern - there are a number of online voroni generators to choose from. After generating a suitable pattern in svg format I imported it into LightBurn, added a border for the edge of the frame and circles for where the fasteners would be.

The frame was duplicated and the voroni shapes inset a couple of mm each - allowing me to create a ‘sandwich’ with the stained glass pieces held securely in the middle of the sandwich.

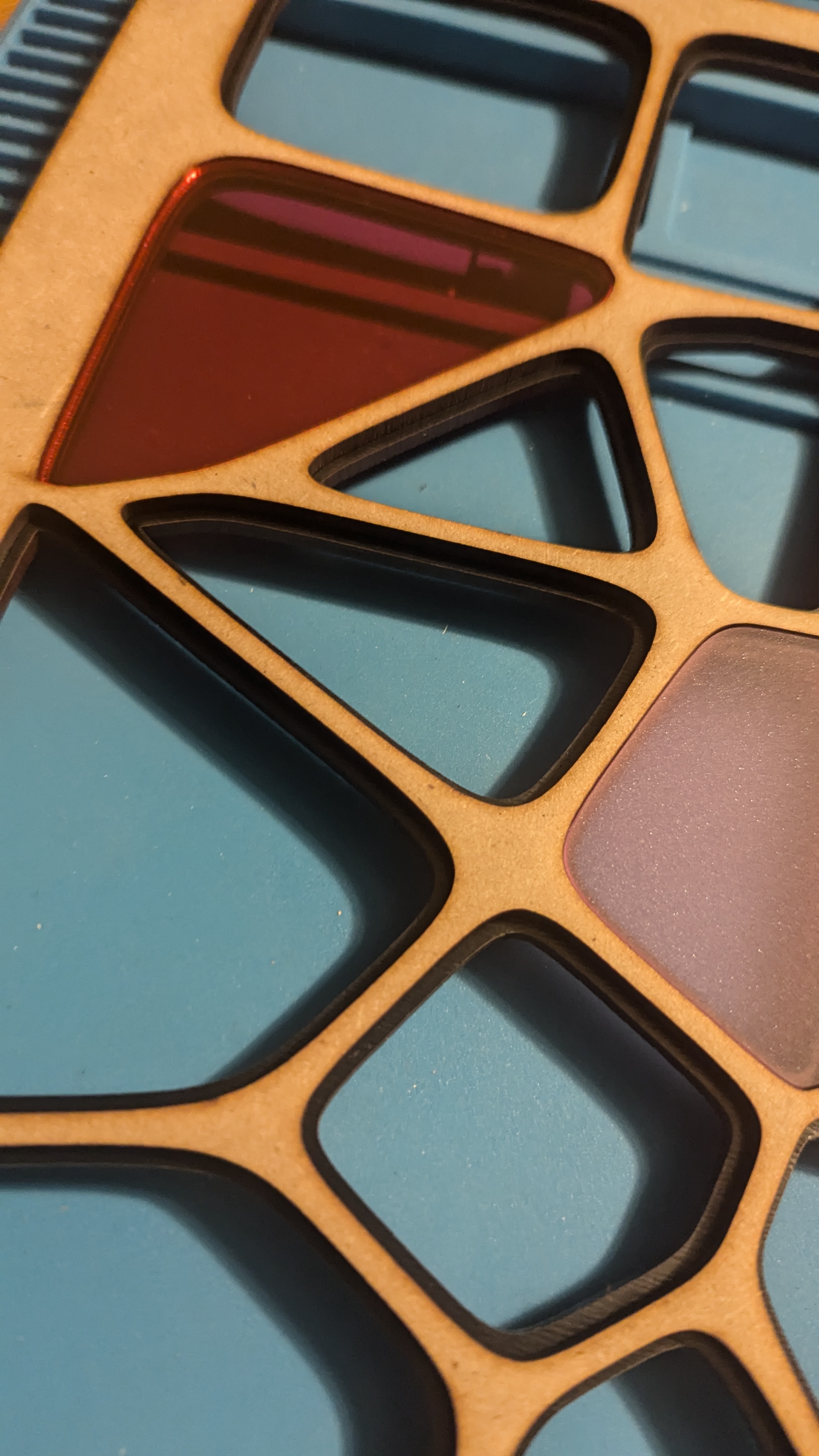

Section of the frame showing the detail of the ‘sandwich’ layers

The photos below show the process of completing the build.

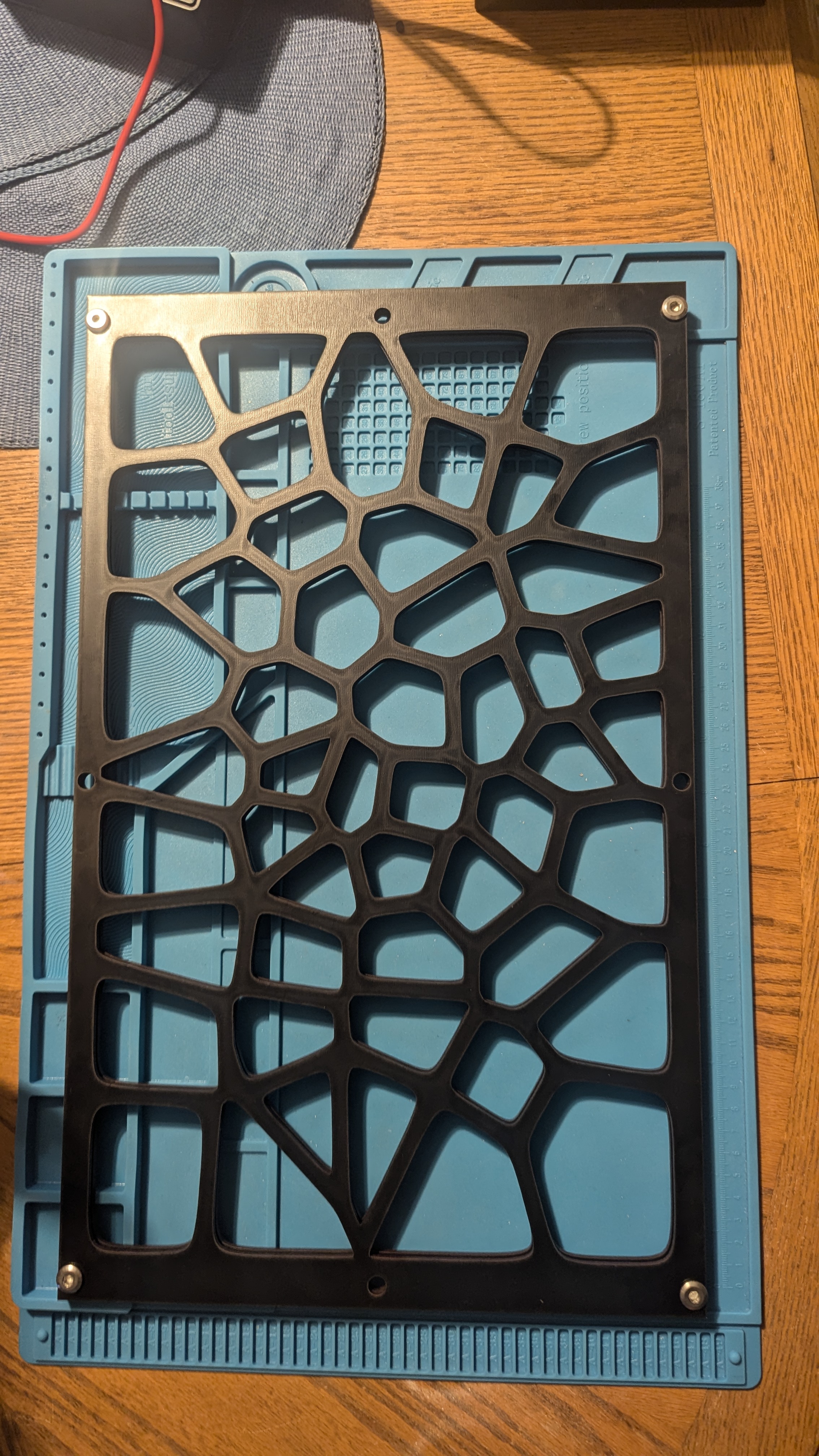

Outer frame cut from Smokey Hills Ecoblack

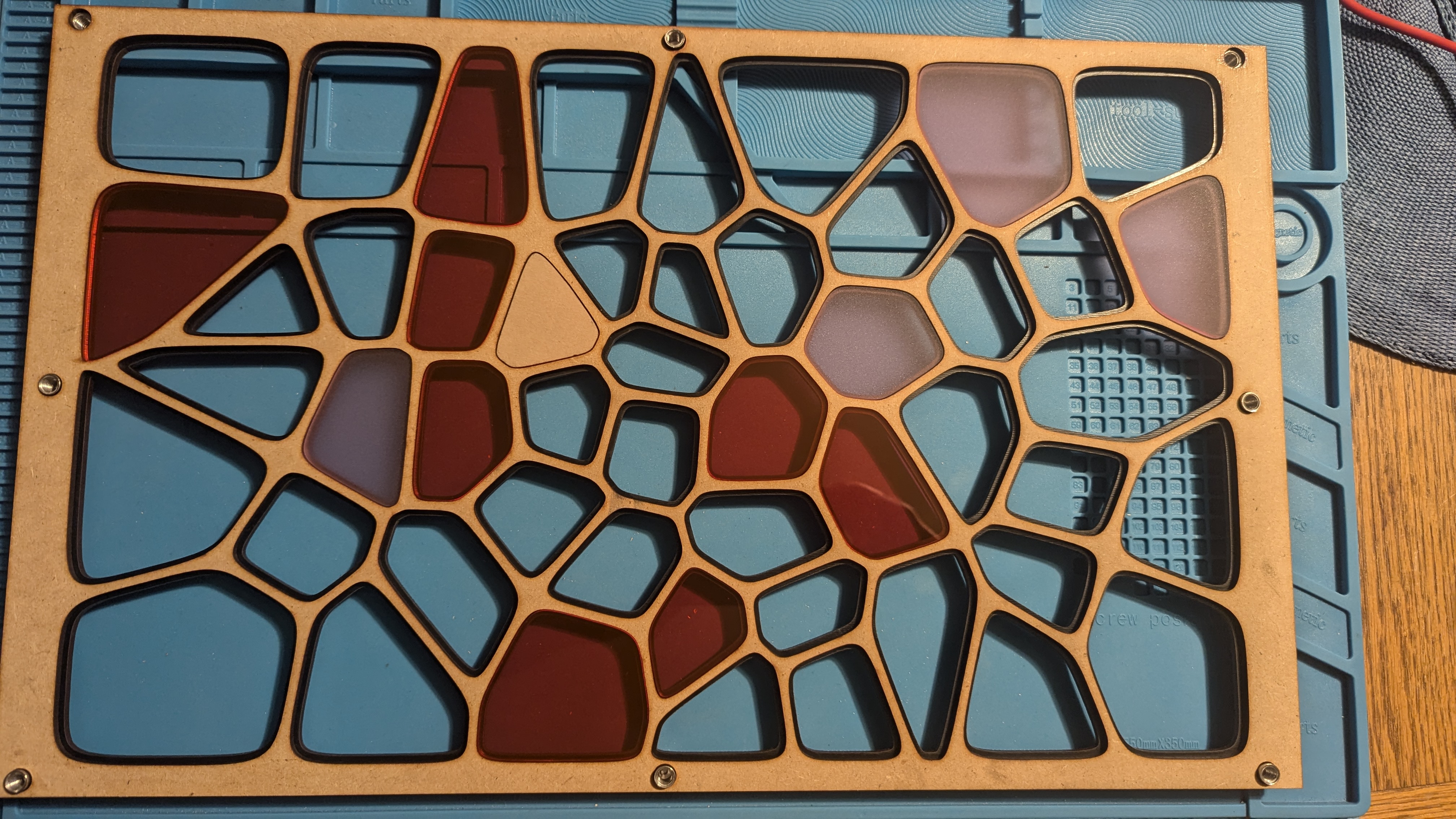

Assembly - starting to add the acrylic

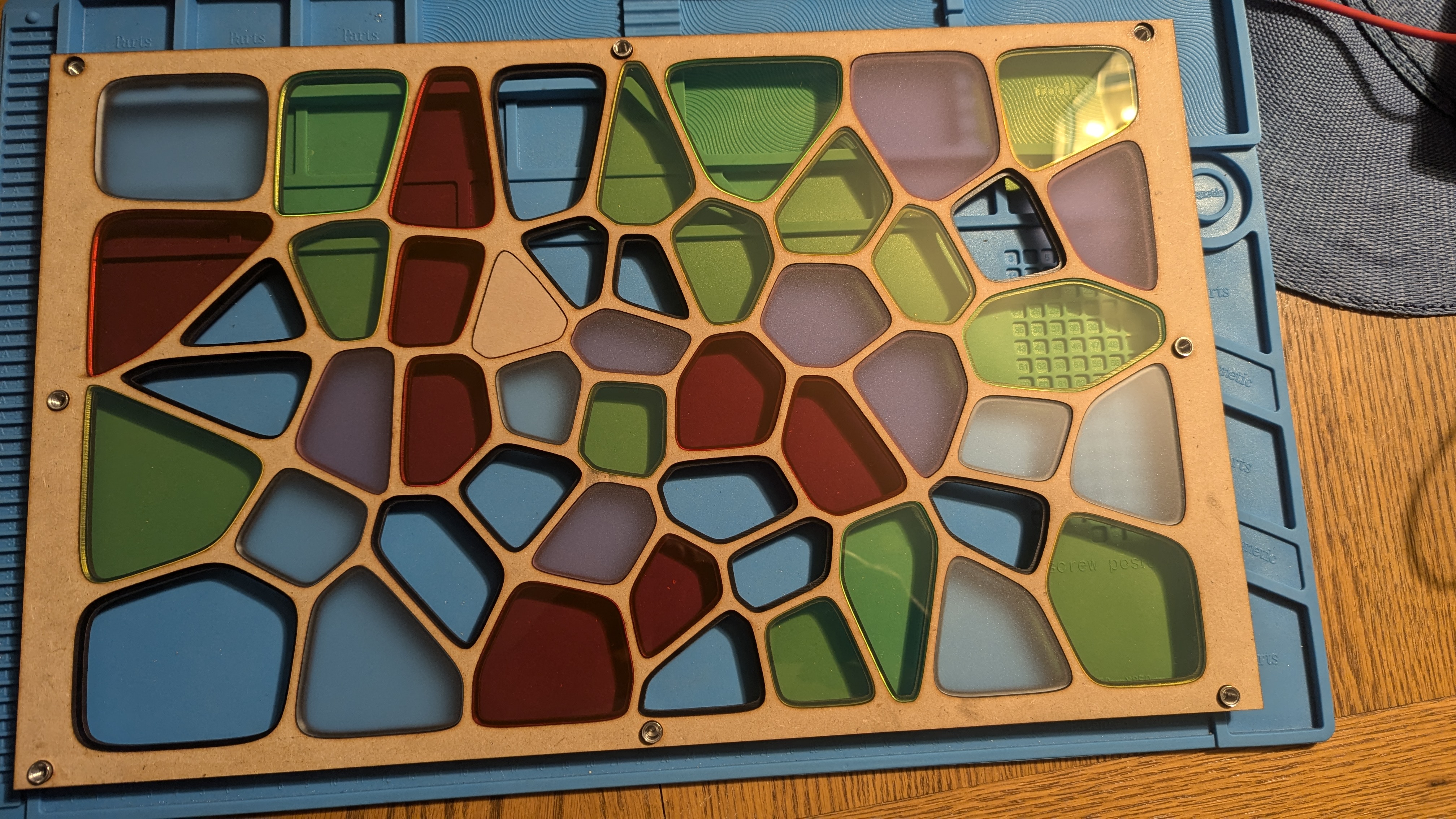

Assembly - in progress

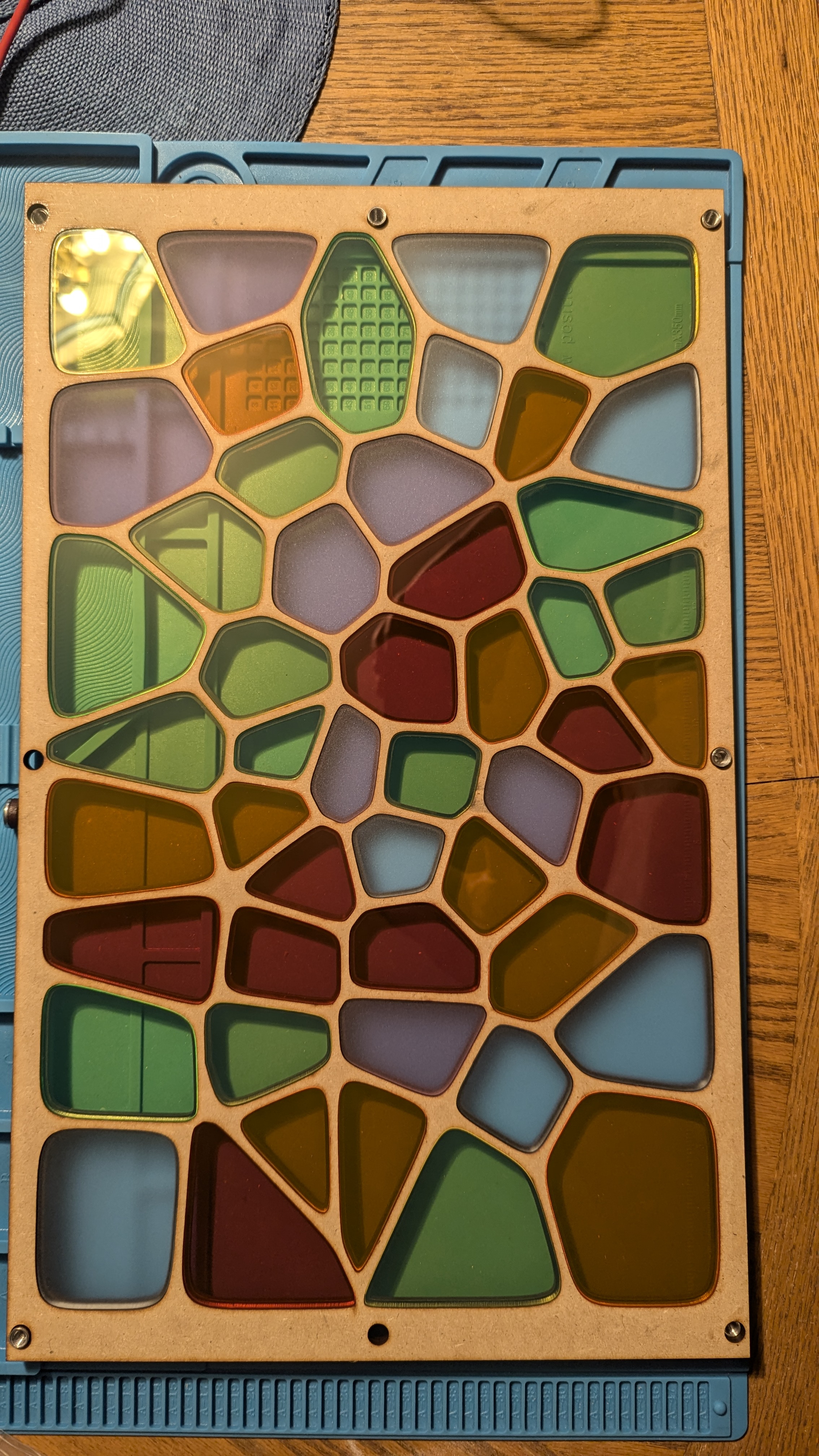

Assembly - almost done

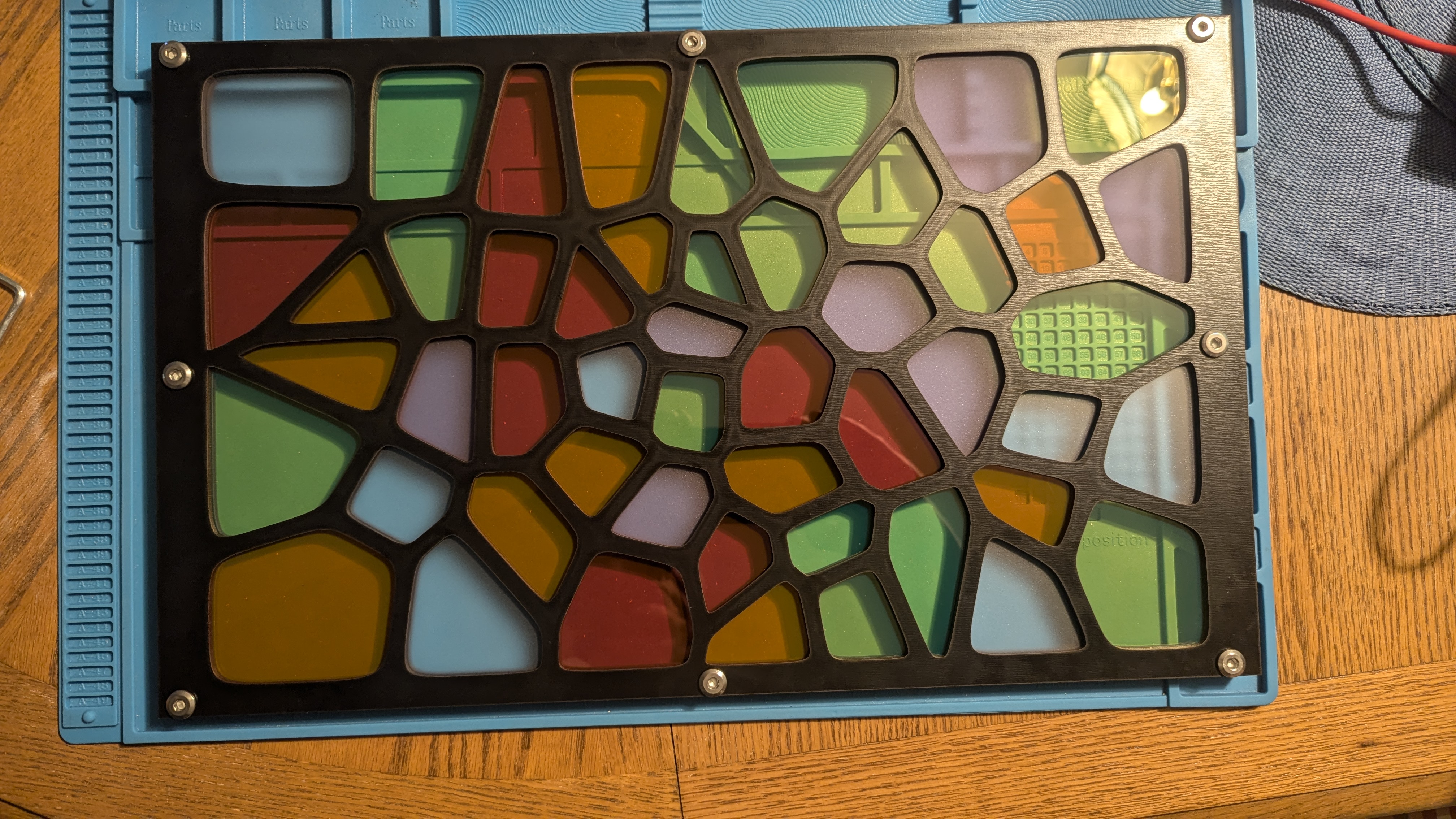

Assembly - adding the fastners

Final Result
